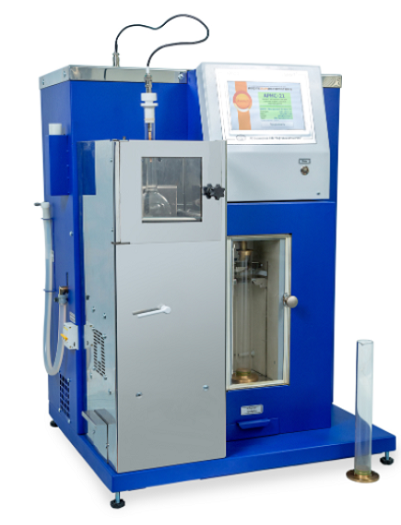

Lintel ARNS-21. Automatic device for determining fractional composition
Lintel ARNS-21. Automatic device for determining the fractional composition of oil and light oil products
Description
- Preset test programs. Each test program contains a standard, group, test parameters and report form. Thus, when selecting a program, all necessary parameters and test conditions are set and maintained automatically.
- The report form editor allows you to set the required points, both for temperature and distillation, and determine the need to make adjustments for atmospheric pressure and losses. The required report parameters can be changed when viewing the result.
- Automatic fire extinguishing system.
- Integration with the Lintel Link data collection system allows for collection and transmission of laboratory test results from the device to a personal computer via wireless communication. Integration with the Lintel LIS laboratory information system provides comprehensive automation of laboratory activities.
- Test logging provides storage of up to 200 test results and distillation graphs, as well as additional information on test compliance.
- Measurement of vapor temperature, bath temperature and receiver temperature.
- Measuring volume in a graduated cylinder.
- Residual measurement, both in manual and automatic mode.
- Automatic correction for barometric pressure in the range from 630 to 810 mmHg.
- Sound signaling of the start of boiling and the end of distillation.
- Automatic cooling of the heater at the end of distillation, with cooling of the heater to a temperature 5ºС above room temperature.
- Convenient, intuitive menu for selecting a test program, navigating through the test log, diagnostics and device settings.
- Full self-diagnostic system with indication of the causes of malfunctions on the display.
- Possibility of updating the device software remotely.
Implemented standards
GOST 2177
GOST R EN ISO 3405
ASTM D 86
GOST R EN ISO 3405
ASTM D 86
Additional information
| Test duration, no more than |
min 90 |
|---|---|
| Volume of cooling bath |
l 4 |
| Temperature |
°C from 0 to plus 60 |
| Power consumption in test mode |
Tue 1500 W |
| Dimensions without packaging |
WxHxD 585x750x515 mm |
| Dimensions with packaging |
WxHxD 748x952x640 mm |
| Weight without packaging |
50 kg (excluding the heat carrier in the bath) |
| Gross weight |
90 kg |
| Ambient temperature |
from 10 to 35°C |
| Relative humidity at a temperature of +25°C |
80% |
| Power supply voltage |
from 187 to 253 V |
| Power supply frequency |
from 49 to 51 Hz |
| Service life |
6 years, with no more than 15,000 hours of operation |
| Electrical safety |
Grounding of non-current-carrying parts and compliance with protection class 0I according to GOST R IEC 61140-2000 |
| Sound accompaniment |
Sound signal at the end of the test, detection of a fault |
| Diagnostics and setup |
Built-in self-diagnostics and configuration algorithms, notifying users about the causes of malfunctions |
